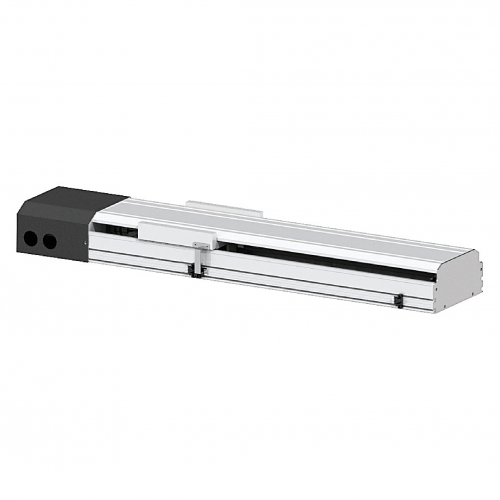

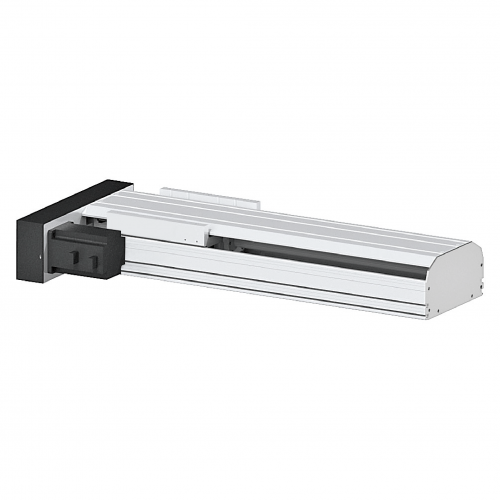

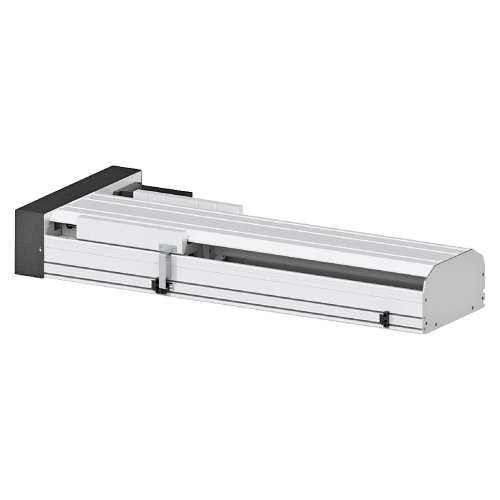

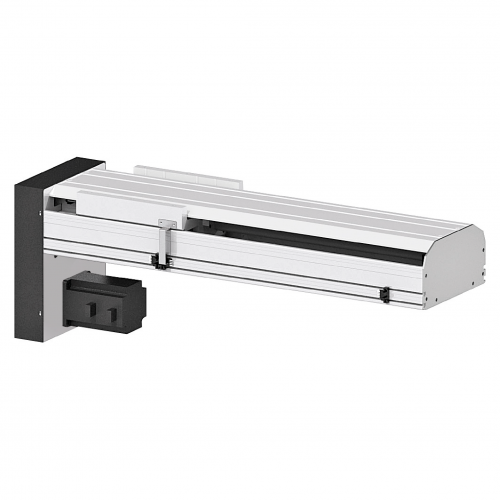

SBW202 Series Single Axis Robot

Product Features:

A. Diversified products, easy to match, and tailor-made special customized products.
B. Single shaft can be used in any combination for multi-axis, easy to assemble and maintain.
C. Motor connection can be selected according to the use space, motor direct, motor indirect, etc...

Precautions for use:

  • (1) Speed and effective travel
  • 1. Vibration may occur when the effective stroke is too long, and the speed should be reduced.
  • 2. Resonance may occur when the screw speed exceeds the critical speed. The critical speed is related to the length of the screw. Therefore, the critical speed of the ball screw also indirectly determines the effective stroke and total length of the slide module.
  • 3. Acceleration and deceleration will cause the inertia load to be generated. The higher the acceleration and deceleration, the smaller the handling quality; and the excessive acceleration and deceleration will produce a larger impact force, which must be included in the design.
  • (2) Load and installation
  • 1. The maximum handling quality contained in the catalogue is standard. If you have other special load requirements, please contact us.
  • 2. When the screw drive product is used vertically (Z-axis), it is recommended to use a brake device to prevent the item from slipping.
  • 3. If the actual load center of gravity is too large from the load center of the slide table, it may cause excessive torque, vibration or slow response. It is recommended that the actual load center of gravity be used within the specification as much as possible.

Product specifications:

系列名稱 本體寬度 螺桿導程 重複定位
精度等級
有效行程 滑塊數量 馬達安裝 光電位置 馬達廠牌 馬達功率 馬達煞車 減速比
SB W202 P10 N S400 4P CM LOS M 1M
半密式
螺桿傳動
W70
W100
W134
W178
W202
P05
P10
P20
其他導程
可另洽詢
N級
±0.02mm

P級
±0.008mm
可依需求
客製行程
2P 雙滑塊
4P 四滑塊
CM 馬達直接
LM 馬達間接向左
RM 馬達間接向右
BM 馬達間接向下
LOS 外掛置左
ROS 外掛置右
IS 內藏式
NS 無光電
M 三菱
P 松下
Y 安川
T 台達
其他廠牌
1M 750W
2M 400W
3M 200W
4M 100W
5M 步進馬達
B 有煞車

未註記為
無煞車
G3
G5
G10
可搭配各
式減速機
